Dynamic Signal Analyzer vs Spectrum Analyzer: Frequency Resolution Guide

Measurement Science — Instrumentation

A close look at why FFT-based architecture gives the Dynamic Signal Analyzer a decisive edge at low frequencies — and where the traditional spectrum analyzer still wins.

The Direct Answer: Resolution Bandwidth Is the Core Difference

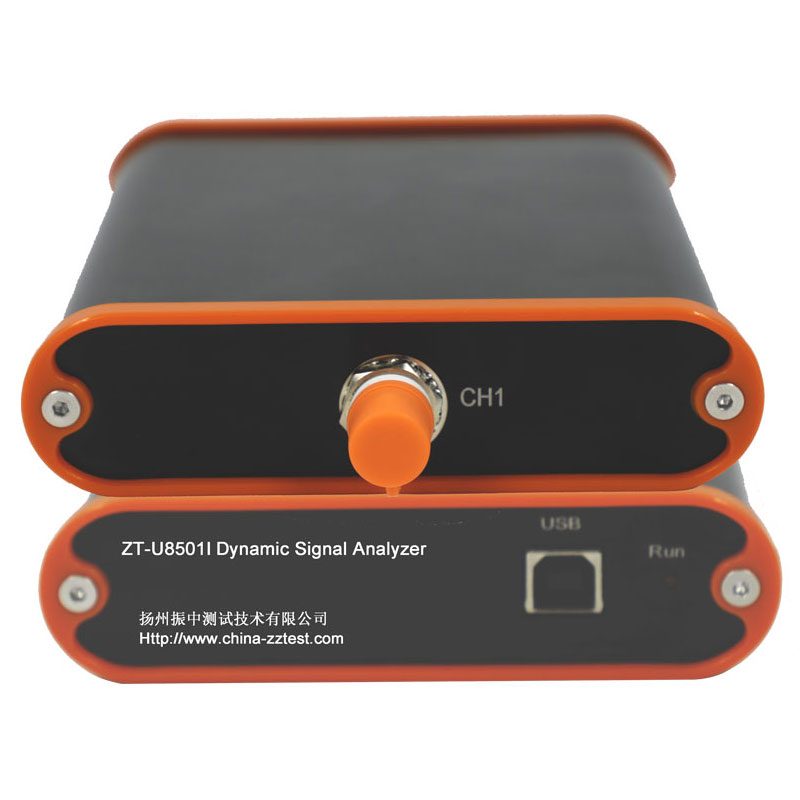

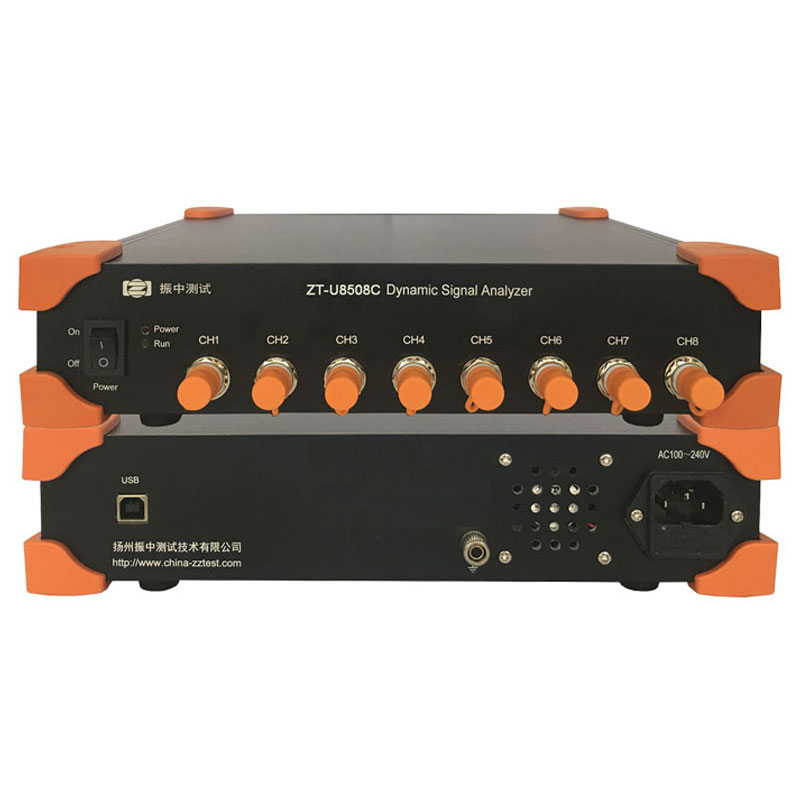

A Dynamic Signal Analyzer achieves far finer frequency resolution than a traditional spectrum analyzer at low frequencies because it relies on digital Fast Fourier Transform (FFT) processing rather than a swept-tuned superheterodyne architecture. In practical terms, a Dynamic Signal Analyzer can resolve spectral lines as close as 0.01 Hz apart in a baseband measurement, while a conventional swept spectrum analyzer typically struggles below a few hertz of resolution bandwidth (RBW) due to filter and sweep-time limitations. This distinction matters enormously for anyone measuring low-frequency mechanical vibration, acoustic resonance, or structural modes, where signals of interest often sit within a few hertz of each other.

The reason is architectural. A traditional spectrum analyzer sweeps a local oscillator across a frequency range and passes the mixed signal through an analog or digital IF filter. Narrowing that filter to improve resolution forces a much slower sweep, which quickly becomes impractical below a few kilohertz. A Dynamic Signal Analyzer instead digitizes the entire time-domain waveform and computes an FFT over a fixed record length, meaning resolution is governed purely by record length and sample rate, not by a physically swept filter.

How FFT-Based Architecture Changes the Resolution Equation

Every Dynamic Signal Analyzer calculates frequency resolution using a simple relationship: resolution equals the sample rate divided by the number of FFT points, or equivalently, the inverse of the time record length. A four-second time record, for example, yields a resolution of 0.25 Hz regardless of the center frequency being examined. This is fundamentally different from a swept analyzer, where resolution bandwidth is set independently of measurement time but directly trades off against sweep duration.

Why This Matters for Low-Frequency Work

Mechanical systems, rotating machinery, and building structures often generate energy below 1 kHz, sometimes even below 1 Hz for large civil structures. A traditional spectrum analyzer attempting to resolve two tones spaced 0.5 Hz apart near 10 Hz would require an extremely narrow RBW filter, resulting in sweep times that can stretch into minutes or longer. A Dynamic Signal Analyzer performs the equivalent measurement in seconds because the entire spectrum is computed simultaneously from one captured time record.

Resolution in a Dynamic Signal Analyzer is not a filter you dial in — it is a direct consequence of how long you choose to listen.

Comparing Measurement Speed and Practical Resolution

Speed and resolution are inseparable when comparing these two instrument types. The table below illustrates typical figures for a low-frequency measurement scenario spanning 0 to 100 Hz.

Approximate performance comparison for low-frequency spectral measurements.
Parameter	Dynamic Signal Analyzer	Traditional Spectrum Analyzer
Typical Resolution at 100 Hz Span	0.01–0.1 Hz	1–10 Hz
Time to Complete Sweep / Capture	1–10 seconds	30 seconds to several minutes
Phase Information Captured	Yes, inherently	Limited or unavailable
Best Suited Frequency Range	DC to ~100 kHz	Hundreds of MHz to GHz

This comparison shows why a Dynamic Signal Analyzer is the preferred instrument whenever both fine resolution and reasonable measurement time are required simultaneously at low frequencies, while a traditional spectrum analyzer retains its advantage at radio frequencies where FFT hardware becomes impractical.

Windowing and Its Effect on Effective Resolution

A subtlety often overlooked when discussing a Dynamic Signal Analyzer is the role of window functions applied before the FFT. Because the time record is finite, spectral leakage can blur adjacent frequency lines together, effectively reducing usable resolution even though the mathematical bin spacing remains fine. Choosing the correct window is essential to preserving true resolving power.

Common Window Types and Trade-offs

Hanning window: good general-purpose balance between resolution and amplitude accuracy for continuous random signals.
Flat-top window: prioritizes amplitude accuracy for calibration tasks but slightly widens the main lobe.
Uniform (rectangular) window: preserves maximum resolution, best suited for transient captures where the entire event fits the record.
Force/exponential window pair: used in impact testing to separate the forcing function from decaying response.

A traditional spectrum analyzer, by contrast, does not apply digital windowing in the same sense; its resolution is instead constrained directly by the analog or digital IF filter bandwidth, which cannot be adjusted after the sweep is captured. This means a Dynamic Signal Analyzer offers post-capture flexibility that a swept instrument simply cannot replicate.

Info

Post-capture reprocessing lets engineers re-window a single Dynamic Signal Analyzer recording multiple times without repeating the measurement.

Real-World Applications Where Resolution Differences Matter Most

The practical impact of choosing a Dynamic Signal Analyzer over a traditional spectrum analyzer becomes clear in several common engineering scenarios.

Rotating Machinery Diagnostics

Bearing defect frequencies and shaft harmonics often cluster within a few hertz of each other, especially at lower running speeds. A Dynamic Signal Analyzer's fine resolution allows technicians to separate a bearing fault frequency from a nearby running-speed harmonic that a coarser instrument would merge into a single broad peak, potentially masking an early-stage fault.

Warning

Coarse resolution can silently merge a bearing fault frequency with an adjacent running-speed harmonic, delaying detection until the fault has progressed significantly.

Structural and Modal Testing

Closely spaced structural modes, common in symmetric structures like bridges or turbine blades, require resolution well under 1 Hz to distinguish. A Dynamic Signal Analyzer's ability to capture coherence and phase data alongside amplitude makes it possible to confirm whether two closely spaced peaks represent genuinely separate modes or a single mode with measurement noise.

Audio and Acoustic Analysis

In acoustic testing, resolving harmonic distortion products that sit just above the fundamental frequency demands both fine resolution and dynamic range. A Dynamic Signal Analyzer typically offers dynamic range exceeding 90 dB, allowing low-level harmonics to be measured accurately even when resolution bins are narrow.

Success

With over 90 dB of dynamic range, a Dynamic Signal Analyzer reliably separates faint harmonic distortion from the noise floor in acoustic measurements.

Limitations to Consider Before Choosing a Dynamic Signal Analyzer

Despite its resolution advantages at low frequencies, a Dynamic Signal Analyzer is not universally superior. Its usable frequency range is generally limited to the audio and low ultrasonic bands, typically from DC up to around 100 kHz, occasionally extending higher in specialized models. Beyond this range, digitization and processing constraints make FFT-based analysis less practical, and a traditional spectrum analyzer's swept architecture becomes the more efficient and cost-effective choice.

Danger

Attempting to push a Dynamic Signal Analyzer far beyond its intended frequency ceiling can produce aliased or unreliable results — verify the instrument's specified bandwidth before relying on the data.

Additionally, achieving extremely fine resolution with a Dynamic Signal Analyzer requires longer time records, which can be a limitation when analyzing rapidly changing or non-stationary signals. Engineers must balance the desire for fine resolution against the need to capture a representative, stable segment of the signal.

Choosing the Right Instrument for the Task

The decision ultimately comes down to the frequency range and precision required for a given application. The following list summarizes when each instrument type is the better fit.

Choose a Dynamic Signal Analyzer for low-frequency vibration, acoustic, or modal testing requiring sub-hertz resolution.
Choose a Dynamic Signal Analyzer when phase and coherence data are needed alongside amplitude spectra.
Choose a traditional spectrum analyzer for radio-frequency or microwave signal characterization far beyond the range of FFT-based instruments.
Choose a traditional spectrum analyzer when instantaneous wideband sweeps across gigahertz ranges are the primary requirement.

In Summary

A Dynamic Signal Analyzer provides dramatically finer frequency resolution than a traditional spectrum analyzer for signals below roughly 100 kHz, primarily due to its digital FFT-based architecture, which decouples resolution from sweep time and adds phase and coherence measurement capability. For engineers working in vibration analysis, structural testing, and low-frequency acoustics, this resolution advantage is often the deciding factor in instrument selection.
