Y4001 Piezoelectric soil pressure sensor
Home / Products / Force sensors / Y4001 Piezoelectric soil pressure sensor
  • Y4001 Piezoelectric soil pressure sensor
  • Y4001 Piezoelectric soil pressure sensor
Yangzhou Zhenzhong Testing Technology Co., Ltd.

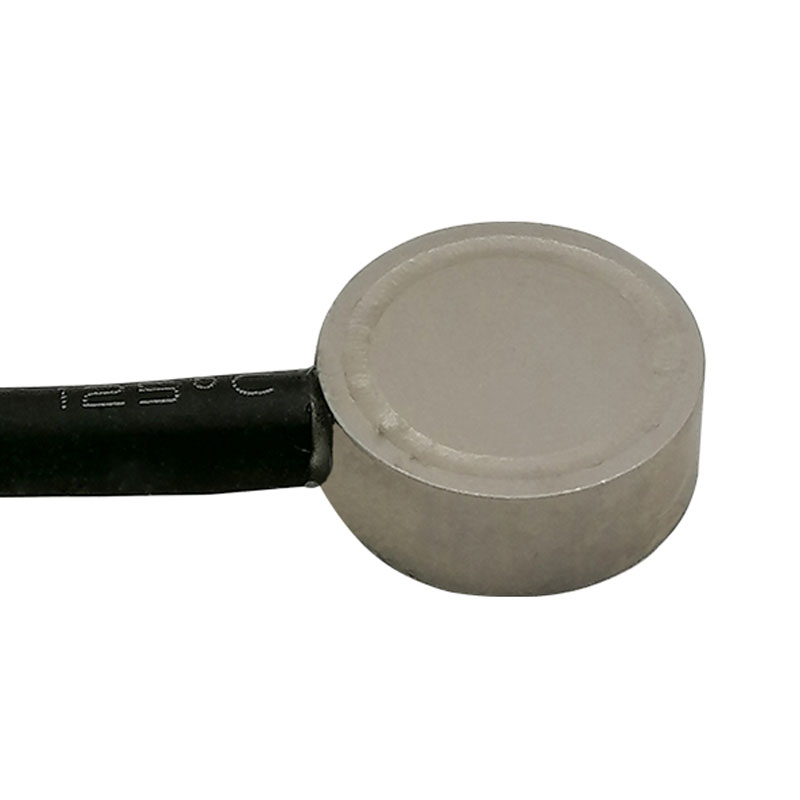

Y4001 Piezoelectric soil pressure sensor

The Piezoelectric Soil Pressure Sensor is a state-of-the-art instrument designed for precise measurement of pressure variations in soil, providing critical data for agricultural, civil engineering, and geotechnical applications. Utilizing piezoelectric technology, this sensor converts the mechanical stress exerted by soil pressure into an electrical signal, enabling real-time monitoring and accurate readings of soil conditions.

Key Features:
High Sensitivity: The sensor detects even the smallest changes in soil pressure, ensuring accurate measurements in various soil types and environments.
Durable and Robust: Designed to withstand harsh outdoor conditions, the sensor features corrosion-resistant materials, making it ideal for long-term deployment in soil monitoring projects.
Real-Time Data: Provides continuous, real-time data on soil pressure, allowing for immediate analysis and decision-making, which is crucial for irrigation, foundation design, and crop growth monitoring.
Compact Design: Its small size allows for easy integration into soil testing systems or embedded installation in the ground without disturbing the surrounding environment.
Low Power Consumption: Optimized for energy efficiency, making it suitable for use in remote locations or integrated with solar-powered monitoring systems.

Contact Us
PREV：No previous article NEXT：Y3002 Underwater explosion pressure sensor
  • Product Details
Model ZT- Y4001 Y4002-1 Y4002-2 Y4003 Y4004
Measuring Range MPa 10 100 200 30 20
Sensitivity pC/MPa ~160 ~460 ~230 ~1600 ~1600
Frequency Response kHz ≥40 ≥50 ≥50 ≥40 ≥40
Operating Temperature °C -20~80 -20~80 -20~80 -20~80 -20~80
Rise Time μs ~2.5 ~2.5 ~2.5 ~2.5 ~2.5
Non-linearity % ≤1 ≤1 ≤1 ≤1 ≤1
Mounting and Dimensions Pre-embedded φ12*4.5 Pre-embedded φ20*9 Pre-embedded φ20*9 Pre-embedded φ30*4.5 Pre-embedded φ40*8
Overload Capacity % 120 120 120 120 120
Weight g 4 12 12 39 65
Company
Yangzhou Zhenzhong Testing Technology Co., Ltd.

Our Company is Y4001 Piezoelectric soil pressure sensor Suppliers and Y4001 Piezoelectric soil pressure sensor Factory.Yangzhou Zhenzhong Testing Technology Co., Ltd. is a high-tech enterprise specializing in the fields of vibration, noise, strain, shock, modal analysis, fault diagnosis, and online monitoring. The company integrates R&D, manufacturing, systems integration, sales, and service, offering complete system solutions encompassing sensors, data acquisition systems, signal processing and analysis software, specialized engineering analysis software, and technical services.

The company independently researches and develops the ZT Series of vibration sensors and force sensors. Its product portfolio covers low-frequency and ultra-low-frequency vibration sensors, excitation systems, data acquisition systems, wireless testing and data transmission systems, horizontal test beds, modal analysis software, sensor frequency response testing systems, vibration calibrator verification systems, and shock measurement control systems, among others. These products are widely used in industries such as civil engineering & bridges, aerospace, energy & power, railways & highways, transportation, marine & shipbuilding, machinery & machine tools, petroleum & petrochemicals, and education & scientific research, providing customers with reliable testing equipment and system solutions.

The core members of the company's technical team possess over ten years of extensive experience in test measurement (vibration, noise, strain, modal, etc.) and systems development. We consistently adhere to a customer-needs-oriented approach, aiming to solve users' practical engineering challenges. Through professional technical support and engineering consulting services, we assist customers in addressing various challenges encountered during product development, performance improvement, and experimental testing, including data acquisition, signal analysis, vibration and noise testing, modal analysis, online condition monitoring, and mechanical fault diagnosis.

Furthermore, we can provide specialized, customized solutions for specific projects or research tasks based on users' unique requirements. The company also undertakes client-commissioned on-site testing and technical training services, committed to helping customers enhance testing efficiency and project outcomes through professional technical support.
