ZT-U8204S 24-bit A/D four-channel dynamic signal analyzer
Home / Products / Vibration and noise data acquisition instrument / USB2.0 Vibration and noise data acquisition instrument USB2.0 / ZT-U8204S 24-bit A/D four-channel dynamic signal analyzer
  • ZT-U8204S 24-bit A/D four-channel dynamic signal analyzer
  • ZT-U8204S 24-bit A/D four-channel dynamic signal analyzer
Yangzhou Zhenzhong Testing Technology Co., Ltd.

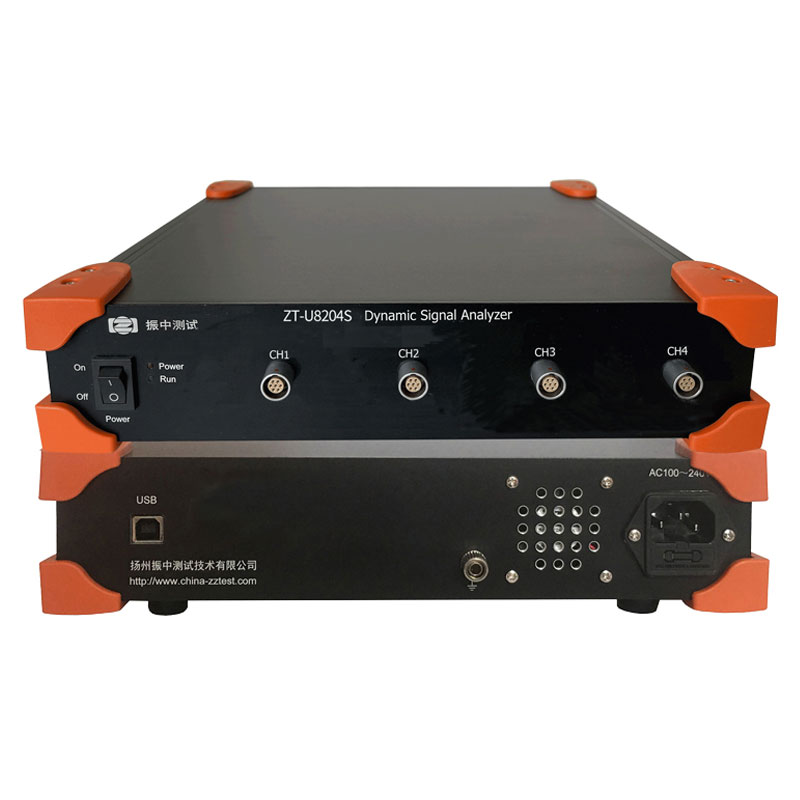

ZT-U8204S 24-bit A/D four-channel dynamic signal analyzer

The ZT-U8204S 24-bit A/D four-channel dynamic signal analyzer integrates advanced microelectronics technology, digital signal processing (DSP) technology, and high-speed data transmission interfaces.  It is specifically designed for the precise measurement of vibration, noise, shock, strain, and various transient physical quantities. The device offers multi-level programmable gain from ×1 to ×3000 (e.g., ×1, ×3, ×10, ×30, ×100, ×300, ×1000, ×3000). This flexible configuration ensures optimal signal-to-noise ratio regardless of whether the input signal is a weak millivolt-level sensor output or a full-scale 10V signal. A built-in 4mA/24V constant current source can directly drive IEPE sensors such as accelerometers and microphones, eliminating the need for external charge amplifiers and greatly simplifying the wiring and complexity of the test system.

Contact Us
PREV：ZT-U8304C Four-channel dynamic signal analyzer with voltage/IEPE/charge inputs NEXT：ZT-U8204I USB interface 24-bit dynamic signal analyzer
  • Product Details
Number of Channels 4
AD Resolution 24-bit
Input Type Voltage single-ended DC/Voltage single-ended AC/Voltage differential DC/IEPE
IEPE Excitation Source 4mA/24V
Signal Input Range +10VpEAK
Signal Input Bandwidth Differential/Single-ended DC DC-50kHz (-3dB)
IEPE/Single-ended AC 0.3Hz-50kHz (-3dB)
Built-in Gain ×1, ×3, ×10, ×30, ×100, ×300, ×1000, ×3000
System Accuracy Better than 0.5%
System Stability Better than 0.05%/h
Linearity 0.05% of full scale
Distortion Better than 0.5%
Maximum Analysis Bandwidth DC-50kHz
Filter Multi-stage analogue filtering plus digital anti-aliasing filter (automatically set according to sampling rate)
Noise ≤5μVRMS (equivalent to input level at maximum gain)
Maximum Sampling Rate Parallel synchronous 128kSPS/channel
Transmission Interface USB 2.0
Dimensions (mm) 269W × 68H × 234D
Weight (g) 2300
Power Supply AC 220V 50Hz
Key Technical Parameters for Dynamic Strain Measurement
Applicable Resistive Strain Gauge Resistance Three-wire 1/4 bridge: 1200 or 3500, half-bridge and full-bridge: 500-10000
Bridge Supply Voltage 2V, 5V, 10V, 24V range switching, accuracy 0.1%
Maximum output current: 50mA
Programmable Bridge Configuration Quarter-bridge (three-wire self-compensating), half-bridge, full-bridge
Signal Bandwidth DC to 100kHz (-3dB)
Indicated Value Error 0.5% ± 3μ8
Strain Gain ×100, ×300, ×1000, ×3000
Input Common-Mode Rejection Ratio Not less than 100dB
Balancing Method 24-bit DA auto-balancing
