A000-F12000 Unidirectional force sensor
Home / Products / Force sensors / A000-F12000 Unidirectional force sensor
  • A000-F12000 Unidirectional force sensor
  • A000-F12000 Unidirectional force sensor
Yangzhou Zhenzhong Testing Technology Co., Ltd.

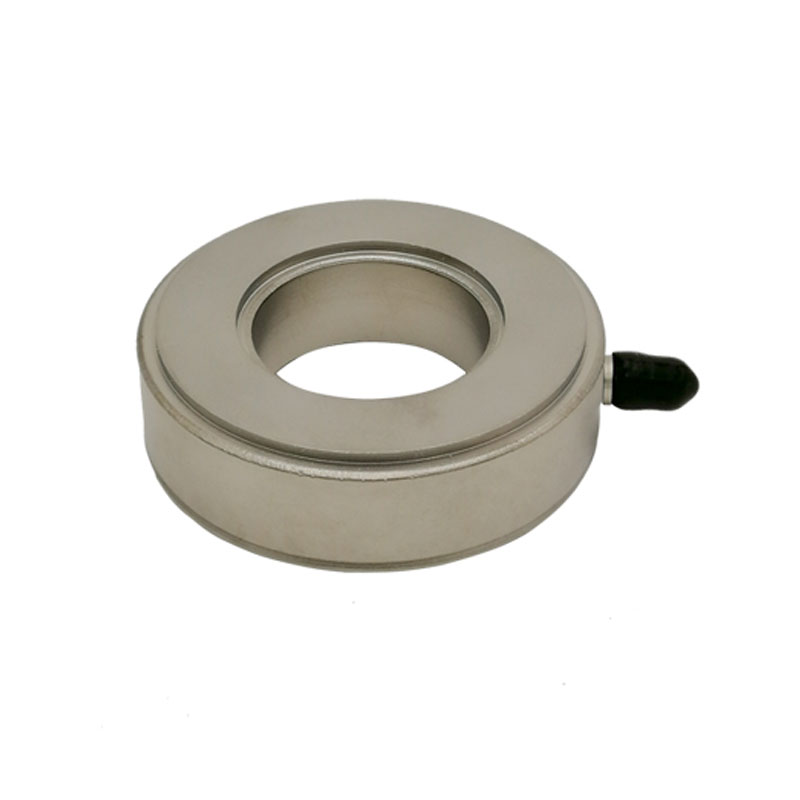

A000-F12000 Unidirectional force sensor

1. Unidirectional Force Measurement
This sensor is specifically engineered to measure force in one direction only, making it ideal for applications where force is applied consistently in a single direction, such as tension or compression forces.

2. High Sensitivity and Accuracy
The sensor offers high sensitivity, allowing for accurate force detection, even in low-force applications. It ensures reliable measurements in critical applications where precise force data is essential.

3. Compact and Space-Efficient Design
The unidirectional force sensor is typically designed to be compact, making it easy to integrate into systems where space is limited or where a small footprint is necessary. Its design allows it to fit seamlessly into both large and small equipment setups.

4. Durability and Robust Construction
Built with high-quality materials, the sensor is designed to withstand harsh environments, including exposure to dust, moisture, and temperature fluctuations. This makes it suitable for industrial, automotive, and research settings.

Contact Us
PREV：F2000-F2331 Tensile and compressive force sensor NEXT：No next article
  • Product Details
Model ZT- F1005 F1015 F1035 F1050 F1100 F1200 F1300 F1600
Range KII 5  15  35  60  100  200  300  600
Sensitivity pC/II 4  4  4  4  4  2  2  2
Non-linearity % G1 G1 G1 G1 G1 G1 G1 G1
Operating temperature °C -40~150 -40~150 -40~150 -40-150 -40~150 -40~150 -40~150 -40~150
Self-oscillation frequency KHE 75  70  60  50  40  30  25  15
Dimensions mm φ125*φ
4-7.5		 φ14.5*φ
6-7,5		 φ24*φ
10-10		 φ28.5*φ
13 ·11		 φ43*φ
20-14		 φ52.5*φ
26.5-15		 φ70*φ
27-20		 φ95*φ
40.5-28
Weight g 5 6  17  32  90  130  370  750
Output method L5 L5 L5 L5 L5 L5 L5 L5



Model ZT- F11000 F12000
Range    KII 1000 2000
Sensitivity pC/II 0.7 4
Non-linearity % ≤1 ≤1
Operating temperature °C -40-150 40-150
Self-oscillation frequency stability KH 8 5
Dimensions mm φ145*φ66*28 φ170*φ66*36
Weight    g
Output method TIIC TIIC



Model ZT- F1005A F1020T F1025T
Range    KII 5 20 25
Sensitivity pC/II 4 4 4
Non-linearity % ≤1 ≤1 ≤1
Operating temperature °C -40~150 -40~150 -40~150
Self-oscillation frequency stability KH 70 70 60
Dimensions mm φ16*9 φ19*φ6.5*4 φ20*φ8*3.5
Weight    g 12 4.5 4
Output method L5 Complete cable 2 metres/L5 Complete cable 2 metres/L5
