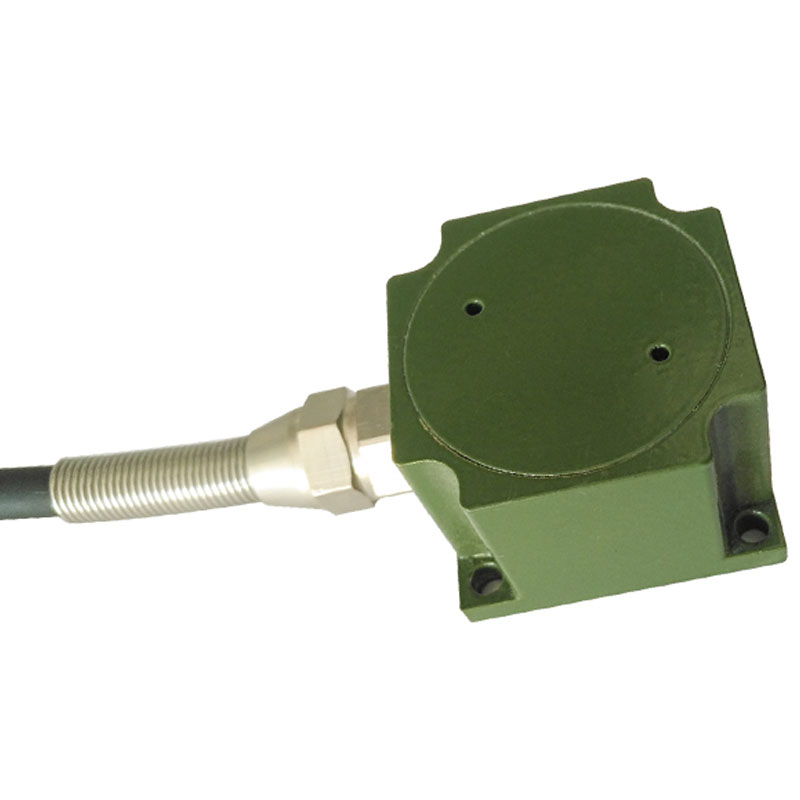

F3050VG-F3260 Three-axis force sensor
Home / Products / Force sensors / F3050VG-F3260 Three-axis force sensor
  • F3050VG-F3260 Three-axis force sensor
  • F3050VG-F3260 Three-axis force sensor
Yangzhou Zhenzhong Testing Technology Co., Ltd.

F3050VG-F3260 Three-axis force sensor

A three-axis force sensor is a sensor used to measure forces applied along three mutually perpendicular directions (X-axis, Y-axis, and Z-axis). It has wide applications in precision measurement and multi-dimensional force detection, particularly in robotics, force feedback, structural testing, and various automated control systems. The following are the main features of a three-axis force sensor:

Main Features:
Three-Dimensional Force Measurement:
The three-axis force sensor can simultaneously measure forces in three directions: X-axis (horizontal force), Y-axis (vertical force), and Z-axis (depth force). This allows it to comprehensively reflect the force state of an object or structure in three dimensions.
High Accuracy:
The sensor utilizes advanced force sensing technologies (such as strain gauges, piezoelectric materials, etc.) and possesses high-precision force measurement capabilities, typically achieving measurement errors within ±0.1%, ensuring reliable data output.
Wide Range of Applications:
Widely used in robotic control systems (for measuring the force on end effectors or robot arms), force feedback devices, virtual reality equipment, the automotive industry, medical equipment, aerospace, structural testing, and other fields.
Durability:
Three-axis force sensors are usually made of durable materials (such as alloys, stainless steel, etc.), possessing strong impact resistance and corrosion resistance, and can withstand harsh working environments.
High-Frequency Response:
Suitable for dynamic force measurement, it can capture force changes in real time with a fast response speed, making it suitable for applications requiring high-frequency sampling and real-time feedback, such as force control of robot arms.

Contact Us
PREV：Y3001 Surface-mount pressure sensor NEXT：F2000-F2331 Tensile and compressive force sensor
  • Product Details
Model ZT- F3205 F3210 F3220 F3240 F3260
Range KN Fx, Fy:2.5
Fz:5		 Fx, Fy4
Fz:10		 Fx, Fy:10
Fz:20		 Fx, Fy:20
Fz:40		 Fx, Fy:60
Fz:100
Sensitivity pC/N Fx, Fy:7.5
Fz:4		 Fx, Fy:7.5
Fz:4		 Fx, Fy4
Fz:2		 Fx, Fy:7.5
Fz:4		 Fx, Fy:4
Fz:2
Non-linearity % ≤1 ≤1 ≤1 ≤1 ≤1
Operating Temperature °C -40-100 -40-100 -40-100 -40-100 -40-100
Natural Frequency kHz 30 26 20 15 8
Dimensions mm 42+42+44 48+48+45 55+55+58 80+80+90 120+120+123
Weight g 390 550 1000 3150 10000
Output Method 3-L5 3-L5 3-L5 3-L5 3-L5
Mounting Thread 8-M5(32+32) 8-M5(38+38) 8-M6(45+45 8-M10(60+60) 8-M16(96+96)



Model Sensitivity Measuring Range Operating Temperature Frequency Range ‘Lateral Sensitivity’ Weight Dimensions
ZT-F2331 A:-50pC/g 500g -40-150℃ 1-5KHz ≤5% 54g φ22+32.5
ZT-F2331E A:-10mV/g 500g -40-100℃ 1-5KHz ≤5% 54g φ22+32.5
Model Sensitivity Measuring Range Operating Temperature Natural Frequency Non-linearity Weight Dimensions
ZT-F2331 F3pC/N ±1KN -40-150℃ 55KHz ≤1% 54g φ22+32.5
ZT-F2331E F:-5mV/N ±1KN -40-100℃ 55KHz ≤1% 54g φ22+32.5
Company
Yangzhou Zhenzhong Testing Technology Co., Ltd.

Our Company is F3050VG-F3260 Three-axis force sensor Suppliers and F3050VG-F3260 Three-axis force sensor Factory.Yangzhou Zhenzhong Testing Technology Co., Ltd. is a high-tech enterprise specializing in the fields of vibration, noise, strain, shock, modal analysis, fault diagnosis, and online monitoring. The company integrates R&D, manufacturing, systems integration, sales, and service, offering complete system solutions encompassing sensors, data acquisition systems, signal processing and analysis software, specialized engineering analysis software, and technical services.

The company independently researches and develops the ZT Series of vibration sensors and force sensors. Its product portfolio covers low-frequency and ultra-low-frequency vibration sensors, excitation systems, data acquisition systems, wireless testing and data transmission systems, horizontal test beds, modal analysis software, sensor frequency response testing systems, vibration calibrator verification systems, and shock measurement control systems, among others. These products are widely used in industries such as civil engineering & bridges, aerospace, energy & power, railways & highways, transportation, marine & shipbuilding, machinery & machine tools, petroleum & petrochemicals, and education & scientific research, providing customers with reliable testing equipment and system solutions.

The core members of the company's technical team possess over ten years of extensive experience in test measurement (vibration, noise, strain, modal, etc.) and systems development. We consistently adhere to a customer-needs-oriented approach, aiming to solve users' practical engineering challenges. Through professional technical support and engineering consulting services, we assist customers in addressing various challenges encountered during product development, performance improvement, and experimental testing, including data acquisition, signal analysis, vibration and noise testing, modal analysis, online condition monitoring, and mechanical fault diagnosis.

Furthermore, we can provide specialized, customized solutions for specific projects or research tasks based on users' unique requirements. The company also undertakes client-commissioned on-site testing and technical training services, committed to helping customers enhance testing efficiency and project outcomes through professional technical support.

Certificate Of Honor
  • Software Copyright
  • Software Copyright
  • Software Copyright
  • Software Copyright
  • Software Copyright
  • Software Copyright
  • Software Copyright
  • Software Copyright
News
Message Feedback
Related products
  • F2000-F2331 Tensile and compressive force sensor
    F2000-F2331 Tensile and compressive force sensor

    A Tensile and Compressive Force Sensor is a highly precise measurement device designed to detect and monitor tensile (pulling) and compressive (pressing) forces applied to a material or structure. The...

    See Details
  • A000-F12000 Unidirectional force sensor
    A000-F12000 Unidirectional force sensor

    1. Unidirectional Force MeasurementThis sensor is specifically engineered to measure force in one direction only, making it ideal for applications where force is applied consistently in a single direc...

    See Details
  • ZT-G8204I Four-channel dynamic signal analyzer
    ZT-G8204I Four-channel dynamic signal analyzer

    The ZT-G8204I four-channel dynamic signal analyzer utilizes a 24-bit analog-to-digital converter. In dynamic signal analysis, the number of bits directly determines the system's dynamic range. A 24-bi...

    See Details
  • ZT-1002S Three-axis Accelerometer

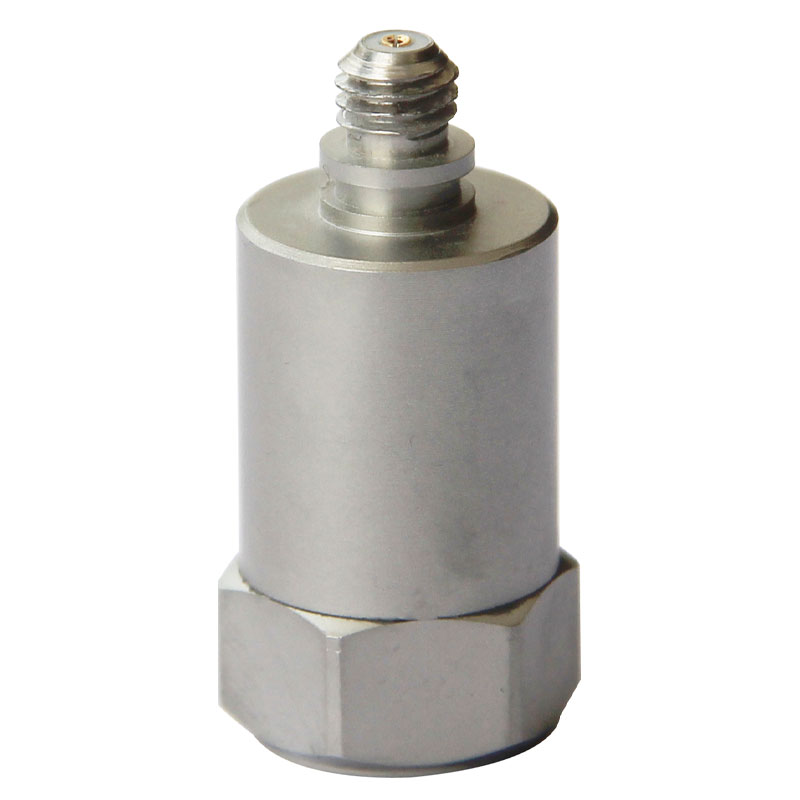

    ZT-1002S Three-axis Accelerometer
