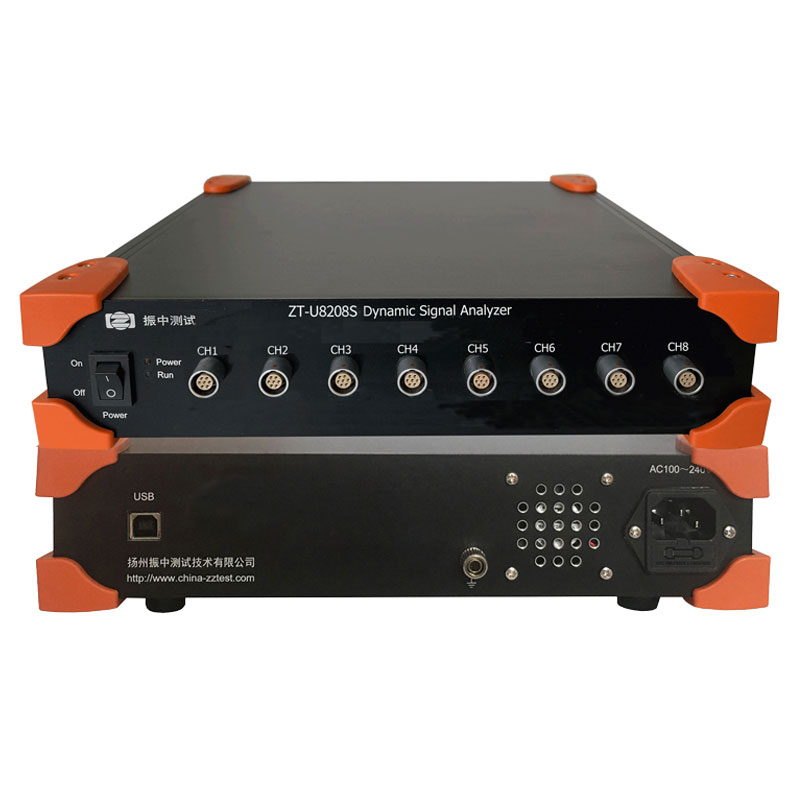

ZT-U8208S 50mA output dynamic signal analyzer
Home / Products / Vibration and noise data acquisition instrument / USB2.0 Vibration and noise data acquisition instrument USB2.0 / ZT-U8208S 50mA output dynamic signal analyzer
  • ZT-U8208S 50mA output dynamic signal analyzer
  • ZT-U8208S 50mA output dynamic signal analyzer
Yangzhou Zhenzhong Testing Technology Co., Ltd.

ZT-U8208S 50mA output dynamic signal analyzer

Features:

  • Capable of performing full-bridge, half-bridge, and quarter-bridge strain gauge testing and analysis.
  • Strain bridge measurement uses a four-wire bridge supply, with automatic compensation for long lead wires to ensure accurate bridge voltage at the remote end.
  • Built-in 4mA/24V constant current circuit, allowing direct connection to IEPE type accelerometers, velocity sensors, force sensors, microphones, etc., for signal testing and analysis.
  • Voltage signal measurement, in conjunction with thermocouples, eddy current sensors, magnetic velocity sensors, and various transmitters (conditioners), allows for testing and analysis of various physical quantities.
  • Can be connected to a charge conditioner (impedance converter) to test various piezoelectric sensors, enabling testing and analysis of acceleration, force, pressure, and other signals.
  • Can be connected to a resistance thermometer conditioner to test various resistance temperature sensors, for temperature testing and analysis.
  • Can be connected to a current conditioner to test various current output sensors (0-20 mA, 4-20 mA, etc.), for measurement and analysis of various physical quantities from current output sensors.
  • Comes with easy-to-learn and fully functional data acquisition and analysis software, allowing users to set parameters such as input type, range, sensor sensitivity, and sampling rate of the dynamic signal analyzer.  It can transmit, display, and analyze data in real time, and record multi-channel signals continuously for extended periods using the computer's hard drive.
Contact Us
PREV：ZT-U8308C Eight-channel synchronous acquisition dynamic signal analyzer NEXT：ZT-U8208I USB 2.0 Dynamic Signal Analyzer
  • Product Details
Number of Channels 8
A/D Bit Depth 24-bit
Input Type Voltage single-ended DC/Voltage single-ended AC/Voltage differential DC/IEPE
IEPE Excitation Source 4mA /24V
Signal Input Range +10VpEAK
Signal input bandwidth Differential/Single-ended DC DC-50kHz (-3dB)
IEPE/Single-ended AC 0.3Hz-50kHz (-3dB)
Built-in Gain ×1, ×3, ×10, ×30, ×100, ×300, ×1000, ×3000
System Accuracy Better than 0.5%
System Stability Better than 0.05%/h
Linearity 0.05% of full scale
Distortion Better than 0.5%
Maximum Analysis Bandwidth DC-50kHz
Filter Multi-stage analogue filtering plus digital anti-aliasing filtering (automatically set according to sampling rate)
Noise Not exceeding 5μVRMS (converted to input terminal at maximum gain)
Maximum Sampling Rate Parallel synchronisation 128kSPS/channel
Transmission Interface USB 2.0
Dimensions (mm) 269W × 68H × 234D
Weight (g) 2300
Power Supply AC 220V 50Hz
Key Technical Parameters for Dynamic Strain Measurement
Suitable Resistive Strain Gauge Values Three-wire 1/4 bridge: 1202 or 3509, half-bridge and full-bridge: 502-10000
Bridge Supply Voltage 2V, 5V, 10V, 24V step switching, accuracy 0.1%
Maximum output current: 50mA
Programmable Bridge Configuration 1/4 bridge (three-wire self-compensating), half-bridge, full-bridge
